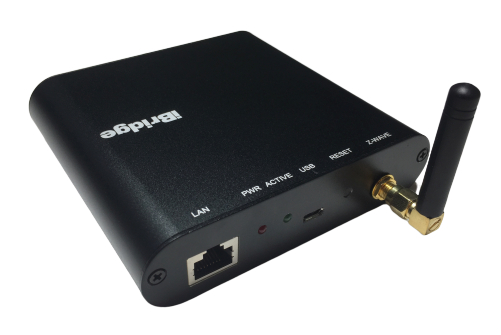

Z-Wave 700 Gateway
(IZG-700)

IZG-700 is a Z-Wave gateway, with the latest generation of Z-Wave 700 chip built-in, interoperating with thousands of devices more smoothly and faster. Equipped with Smart Start function, it can automatically create and configure Z-Wave network for instant installation. The device provides an easier way.

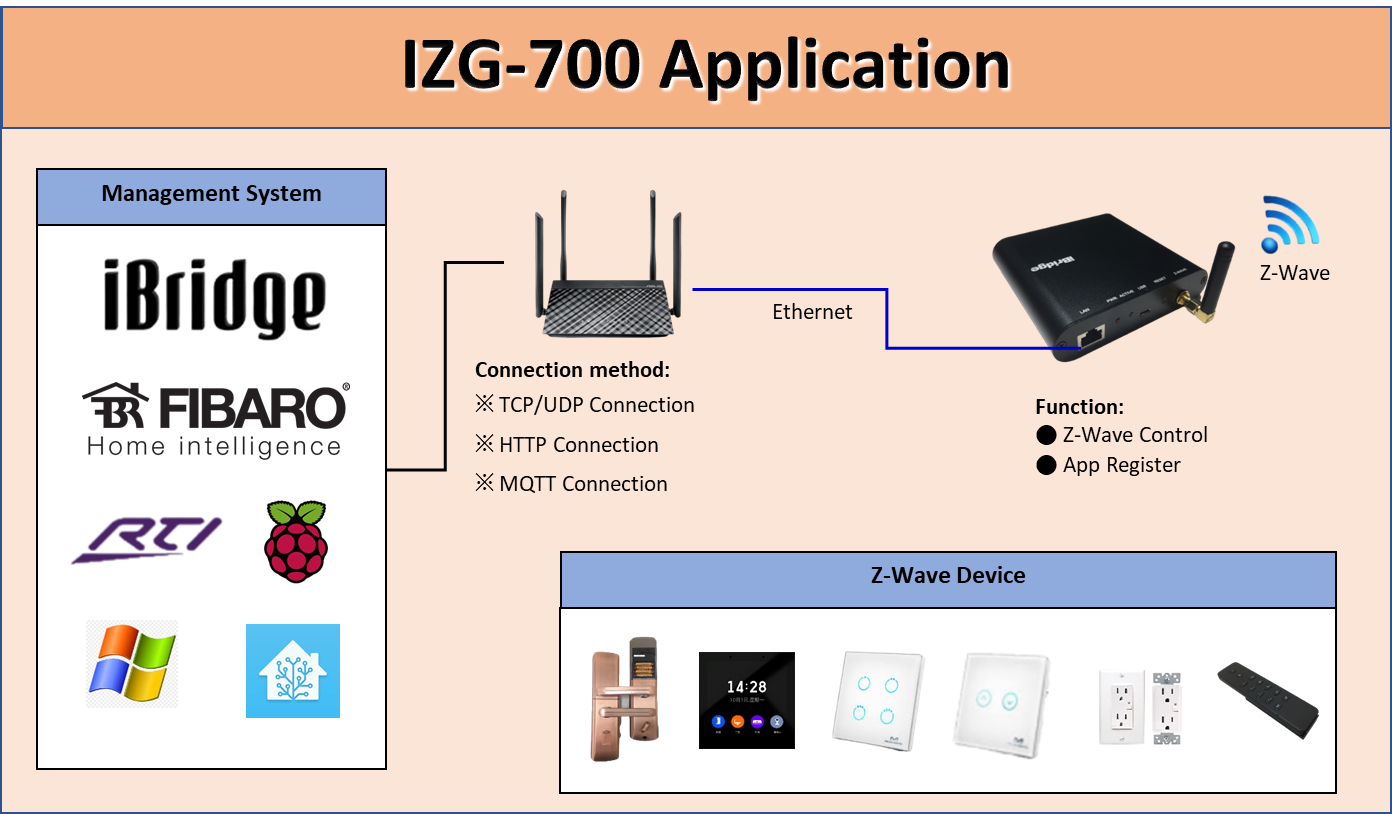

In addition to being able to integrate all Z-Wave devices in the home, Z-Wave 700 Gateway can also be used with iBRIDGE devices to provide a more cost-effective and more integrated solution. Z-Wave 700 Gateway also supports Smart life app for remote control. Support Amazon Alexa, Google Home, Apple Siri, ... and other voice assistants make it easy to implement a smart home.

Z-Wave 700 Gateway will also release APIs to third parties to achieve cross-platform integration.

Characteristic

● Humanized software operation interface
● Support scene editing and automation Control
● Connectable to iBRIDGE devices, support high integration and more device options
● More powerful external antenna
● Industrial aluminum extrusion is stronger
● Support Smart Life APP (optional)

Specification

Ethernet	Standard	IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX
Ethernet	Interface	RJ-45 10/100Mbps
Z-Wave 700	RF Frequency	908.42 MHz (US)
		868.42 MHz (EU)
		922.5 MHz (JP)
	Data Rate	9.6、40、100kbit/s
	Output Power	0…+13 dBm
	High Sensitivity (Typical Values)	-102.5 dBm @9.6 kbit/s
		-101.3 dBm @40 kbit/s
		-97.5 dBm @100 kbit/s
SD Card	Micro SD (HC)	8GB
LED Indicator Display	Red	Power LED
LED Indicator Display	Green	Status LED
Power	Micro USB	5VDC
	Power Adapter	Input: AC 100-240V, Output: 5VDC/1A
	Power Consumption	Normal Mode 1.15W
Working Environment	Operation Temperature	0~60 degree
	Storage Temperature	-20~85 degree
	Relative Humidity	5~90% (Non-condensing)

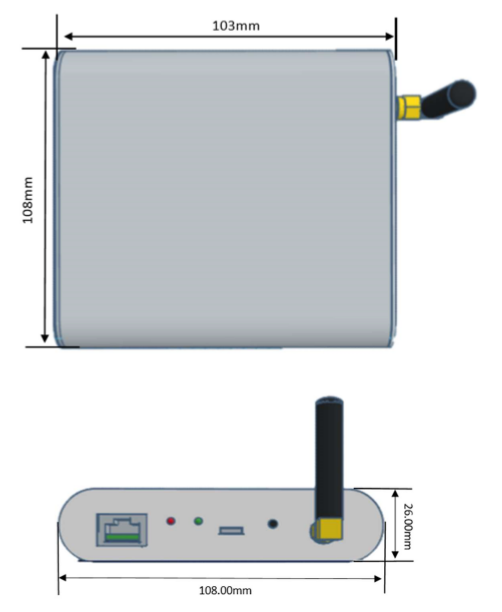

Dimension:	103(L) x 108(W) x 26(H) mm
