LIFE-RF-433 || CLOUD-SQ

Network RF433 Bridge
(NR-433)

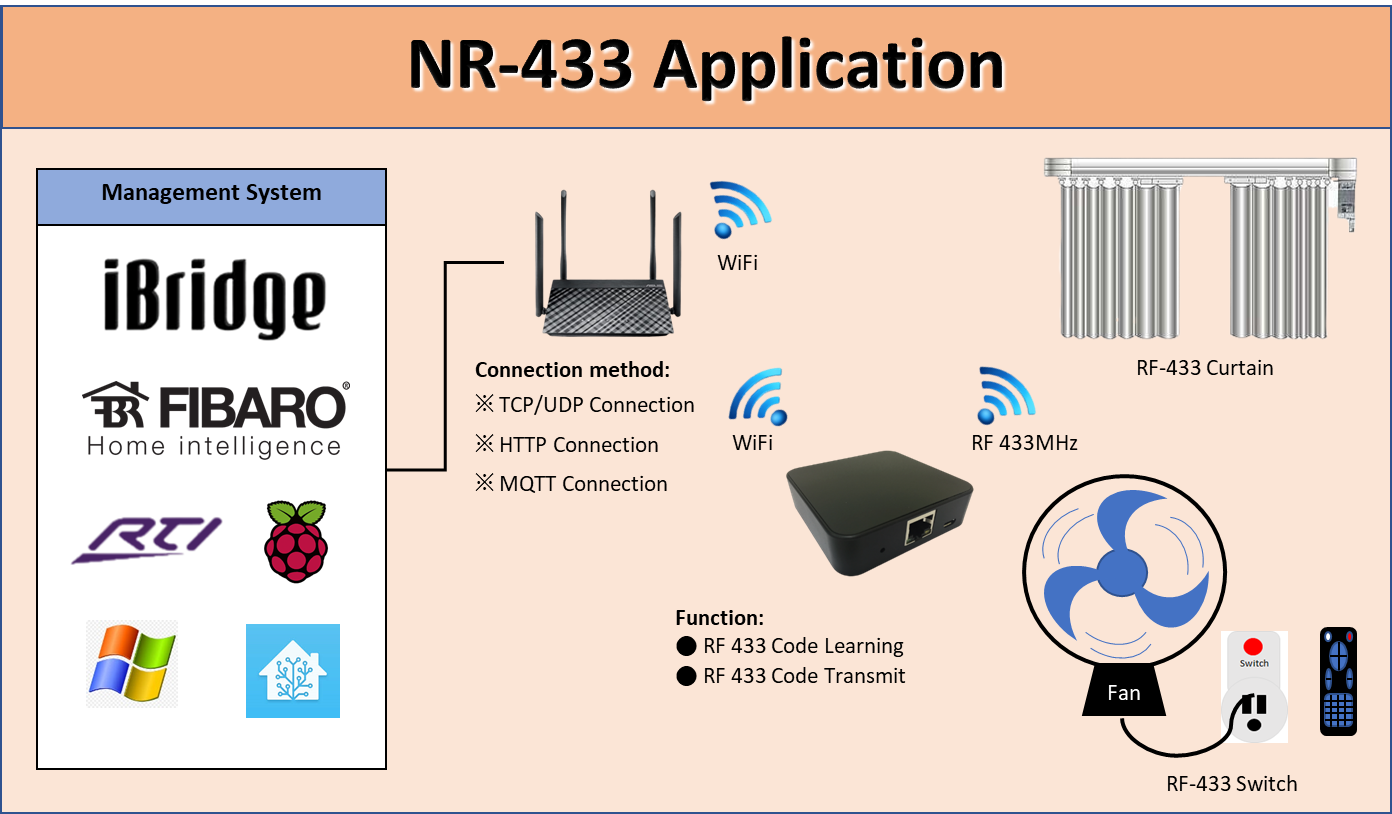

NR-433 is a "plug and play" RF 433 control device. It is intuitive to learn. With iBRIDGE device, it is a completely offline MESH control system, which can easily realize a smart home.

Provides HTTP、TCP/UDP、MODBUS-TCP、MQTT and other protocols and complete APIs, which can be easily integrated directly with other different platforms.

Characteristic

● User-defined device name and action editing
● Support local Wi-Fi MESH (Internet offline) and STA (Internet connection)
● Support single and continuous multiple command learning and emission
● Support multi-brand RF433 remote control (switch, curtain, etc.) for mixed learning editing
● Personalized scene settings can be learned by learning the existing RF remote control
● Support editing file backup and loading
● Can be used with wireless voice controller to achieve the effect of voice command to control the scene

Specification

Wireless	Wi-Fi 802.11 b/g/n (802.11n, up to 150Mbps)
	RF 433MHz
RF433 Transmission distance	15-50m(Affected by the environment)
Ethernet	RJ-45 10/100Mbps
Input Power:	micro USB Adapter 5VDC, 1A
Working Environment	Operation Temperature	0~60 degree
	Storage Temperature	-20~85 degree
	Relative Humidity	5~90% (Non-condensing)

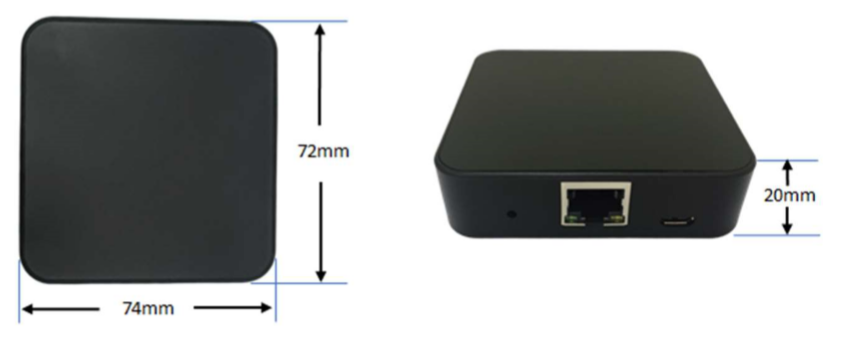

Dimension:	74(L) x 72(W) x 20(H) mm
