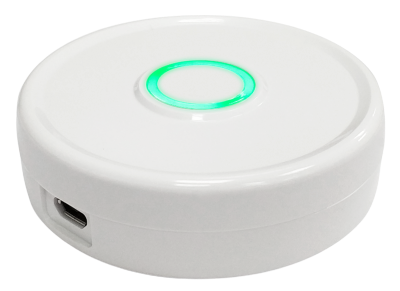

Z-Wave Convertor
(ZW-700)

ZW-700 is a simple Z-Wave gateway, which can directly control Z-Wave devices, and can also be used as a terminal extended distance device. Together with iBRIDGE devices, it is a completely offline MESH control system, which can easily realize smart home.

Characteristic

● User-defined device name and action editing
● Support local Wi-Fi MESH (Internet offline) and STA (Internet connection)
● Support Z-Wave standard protocol
● Support editing file backup and loading
● Can be used with wireless voice controller to achieve the effect of voice command to control the scene

Specification

Wireless	Wi-Fi 802.11 b/g/n (802.11n, up to 150Mbps)
Z-Wave 700	RF Frequency	908.42 MHz (US)
		868.42 MHz (EU)
		922.5 MHz (JP)
	Data Rate	9.6、40、100kbit/s
	Output Power	0…+13 dBm
	High Sensitivity (Typical Values)	-102.5 dBm @9.6 kbit/s
		-101.3 dBm @40 kbit/s
		-97.5 dBm @100 kbit/s
SD Card	Micro SD (HC)	8GB
LED Indicator Display	Red	Power LED
LED Indicator Display	Green	Status LED
Power	Micro USB	5VDC
	Power Adapter	Input: AC 100-240V, Output: 5VDC/1A
	Power Consumption	Normal Mode 1.15W
Working Environment	Operation Temperature	0~60 degree
	Storage Temperature	-20~85 degree
	Relative Humidity	5~90% (Non-condensing)

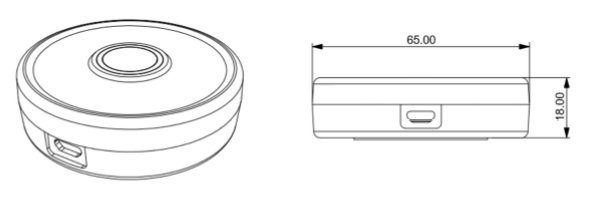

Dimension:	65(L) x 65(W) x 18(H) mm
