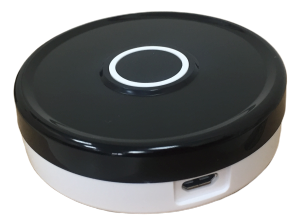

Wi-Fi to IR and 2.4G RF Convertor
(WTR-100C)

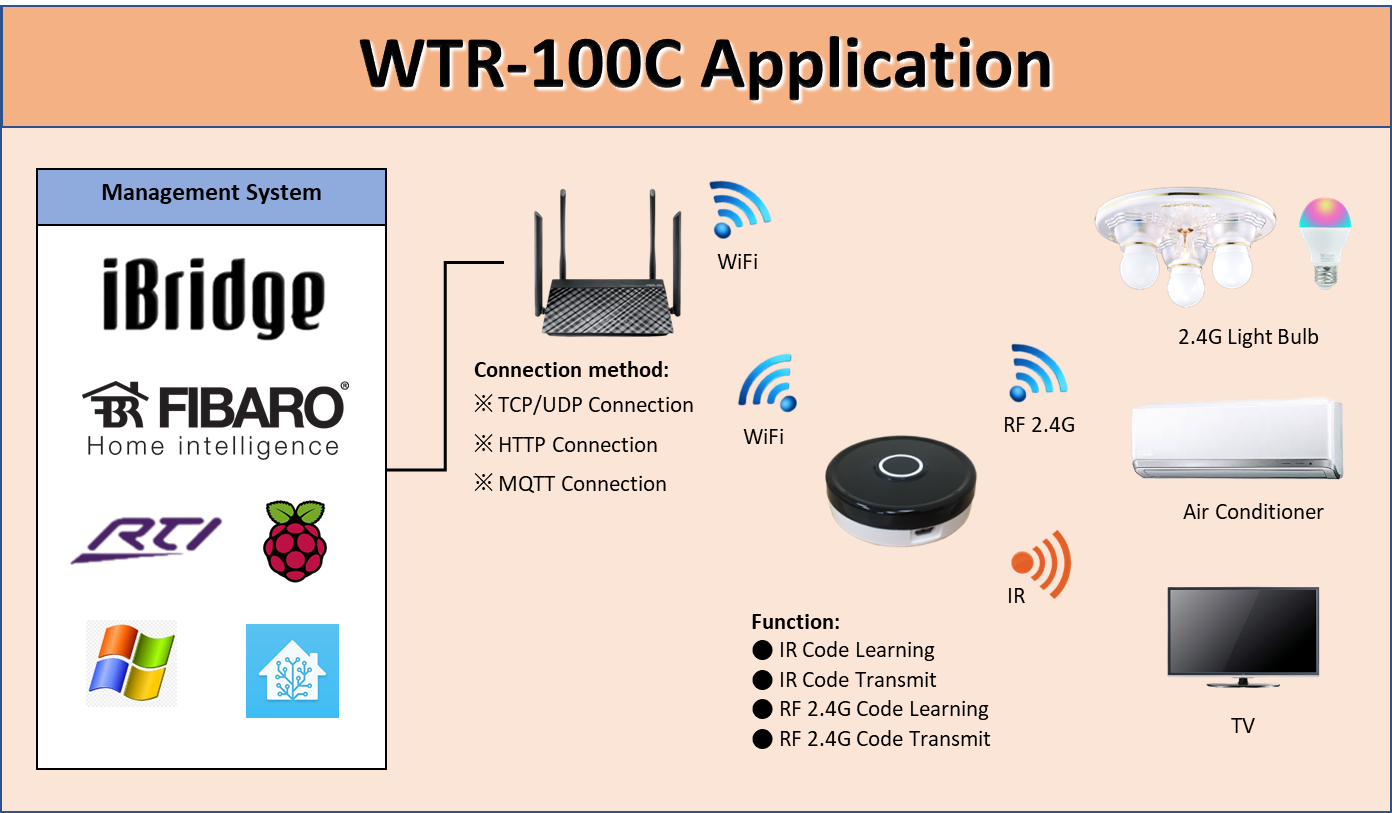

WTR-100C is a "plug and play" Wi-Fi to infrared and 2.4G RF light conversion device. Only one device can control infrared and light at the same time. The operation is intuitive and can Self-defined name, combined with iBRIDGE equipment to form a completely offline MESH control system, can easily achieve home automation control.

Provides HTTP、TCP/UDP、MODBUS-TCP、MQTT and other protocols and complete APIs, which can be easily integrated directly with other different platforms.

Characteristic

● User-defined device name and action editing
● Support local Wi-Fi MESH (Internet offline) and STA (Internet connection)
● Support single and continuous multiple command learning and emission
● Support multi-brand IR remote control (TV, air conditioner, etc.) for mixed learning editing
● Support 2.4G lighting control, you can customize the lighting scene settings by learning the existing lighting RF remote control
● Support editing file backup and loading
● Can be used with wireless voice controller to achieve the effect of voice command to control the scene

Specification

Wireless	Wi-Fi 802.11 b/g/n (802.11n, up to 150Mbps)
Wireless	2.4G RF
2.4G RF Transmission distance	10-30m (Affected by the environment)
Infrared emission distance	10m
IR frequency	38KHz
Input Power:	micro USB Adapter 5VDC, 1A
Working Environment	Operation Temperature	0~60 degree
	Storage Temperature	-20~85 degree
	Relative Humidity	5~90% (Non-condensing)
Dimension:	65(L) x 65(W) x 18(H) mm
